Mixing Tank

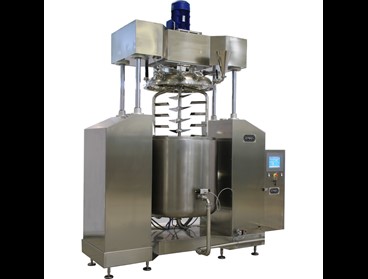

UNIVERSAL TRIPLE STIRRED COUNTER-ROTATING VESSEL -THEPROCREAM BASIC TRIPLE

Vessel especially designed for the production of pharmaceutical and cosmetic creams, liquids and lotions.

• Equipped with a triple mixing system, which operates with different drive systems, making it possible to alter the speed of each agitator independently, according to the processes being performed.
• Counter-rotating anchor stirrer installed in the bottom.
• Slow anchor stirrer with PTFE scrapers that provide optimal homogenization of the product and facilitate heat transfer.
• Center blades that rotate in the opposite direction of the anchor stirrer.
• Top agitator installed on the lid:
• Fast homogenizer-disperser for the production of emulsions, also with dispersion and shear capacity
• Operates under vacuum conditions, which enables product loading and prevents air from entering the vessel during the production process.
• Heat or cool the product using steam (hot water) or chilled water that circulates though the double jacket.
• Volume: 300, 600, 1200 liters.
• Other volumes available upon request.
• The vessel is CIP (clean-in-place) system-ready (optional SIP).
